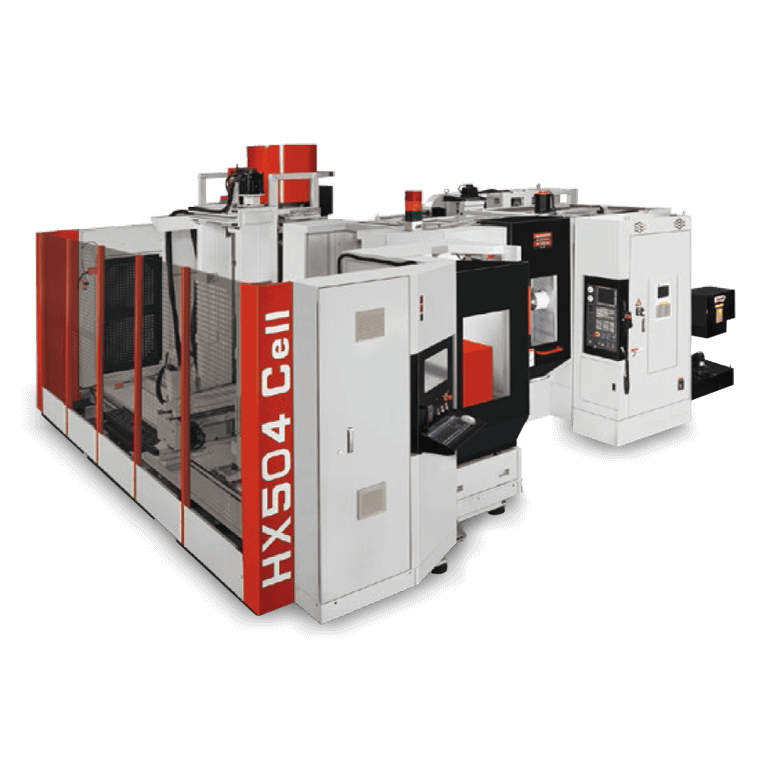

HX504 Cell / HX505 Cell
FMC Series
FMC series is an automated solution to maximize productivity. Simple installation and ease of maintenance makes it convenient for users to operate and maintain.
Automation equipment available for one single machine to multiple production lines.
Quaser Group provides technology and application expertise to enable the best manufacturing performance
| Technical Data | HX504 Cell | HX505 Cell |
| Work Range | ||
| Pallet Size | □500 mm (□19.7") | □500 mm (□19.7") |
| Max. Work Swing Diameter | Ø762 mm (Ø30") | Ø800 mm (Ø31.5") |
| Max. Work Piece Height | 740 mm (29.1") | 740 mm (29.1") |
| Travel X | 762 mm (30") | 762 mm (30") |
| Travel Y | 640 mm (25.2") | 640 mm (25.2") |
| Travel Z | 810 mm (31.9") | 800 mm (31.5") |
| B Minimum Indexing (degree) | 1 / 0.001 | 1 |
| Table Load Capacity | 500 kg (1,102 lbs) | 500 kg (1,102 lbs) |
| Main Spindle | ||
| Spindle Taper |
40 taper
| 50 taper |
| Max. Spindle Speed | 9K ~ 15K | 6K ~ 10K |
| Pallet Changer (For Cell Only) | ||
| Number of Pallet | 8 or 14 | 8 or 14 |
| Method of Pallet Changer / Storage | Swing type (internal) / Matrix type (External) | Swing type (internal) / Matrix type (External) |
| Tool Changer | ||
| Magazine Positions | 240 (std.) | 150 (std.) |
| Max. Tool Diameter | 76.2 mm (3") | 110 mm (4.3") |
| Max. Tool Dia. Due to Neighbor Pots Are Empty | 150 mm (5.9") | 220 mm (8.7") |
| Max. Tool Length | 450 mm (17.7") | 400 mm (15.8") |
Applications
Automobile, aerospace, construction machinery.…industries.
