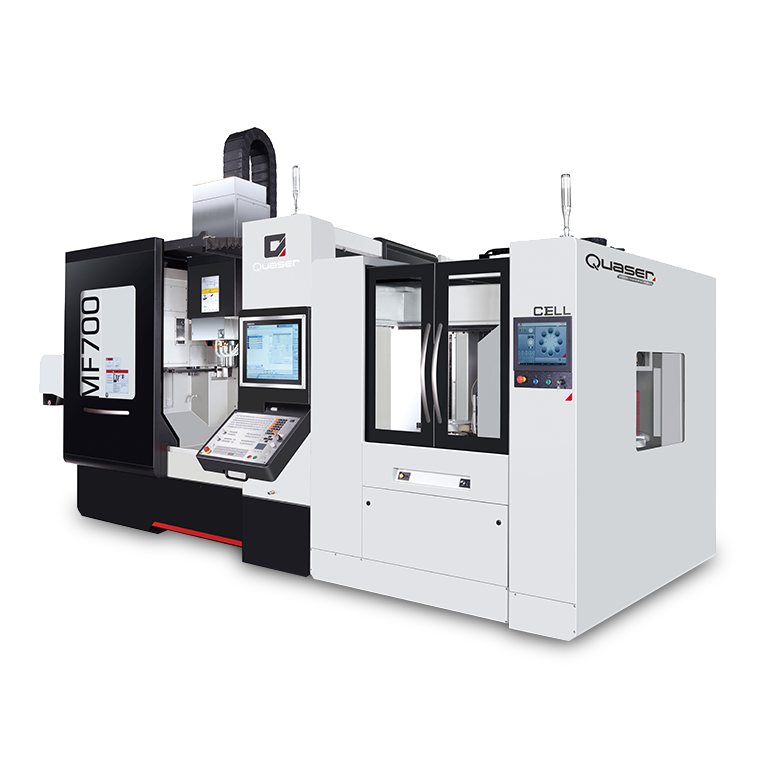

Cell
FMC Series
This intelligent automatic pallet changer has several outstanding features.
Firstly, it has the function of "lights out" production, which can operate automatically without the machine operator. Thereby, this system is reducing energy consumption and carbon emissions and environmentally friendly.
Secondly, this system can solve the problem of labor shortage and improve warehouse efficiency. Furthermore, the pallet changer can be configured with standard 8 or 6 pallets according to the application demand. Moreover, it has the characteristics of high speed and efficiency, with a horizontal axis speed of up to 30m/min and the ability to carry goods more than 200KG.
Finally, it can also be used for flexible manufacturing, adapting to the production needs of small batches and diversified products. This improves production flexibility and efficiency, and customer satisfaction.
In summary, this intelligent automatic pallet changer has several outstanding advantages and can improve warehouse efficiency, reduce costs, increase production capacity and customer satisfaction.
Quaser Group provides technology and application expertise to enable the best manufacturing performance
| Technical Data | MF700 Cell | UX500 Cell |
| Work Range | ||
| Pallet Size | 400 x 400 / 500 x 500 mm(15.75 x 15.75 / 19.69 x 19.69") | 400 x 400 mm (15.75 x 15.75") |
| Max. work piece size | Ø500 x 350 / Ø600 x 350 mm (Ø19.69 x 13.78 / Ø23.62 x 13.78") | Ø500 x 295 mm (Ø19.69 x 11.61") |
| Pallet load capacity | 250 / 350 kg (with pallet) (551.15 / 771.61 lb ) | 200 kg (with pallet) (440.92 lb ) |
| Pallet Changer System | ||
| Number of pallet | 8 or 6 | 8 |
| Exchange Way | Lift and rotation | Lift and rotation |
| Pallet changer | (47) sec | (47) sec |
| Cell Size | ||
| Cell height | 2,200 mm (86.61") | 2,400 mm (94.49") |
| Floor space W x D | 2,085 x 2,030 mm (82.09 x 79.92") | 2,085 x 2,030 mm (82.09 x 79.92") |
| Cell Weight | 2,800 kg (6172.88 lb) | 2,850 kg (6283.11 lb) |
