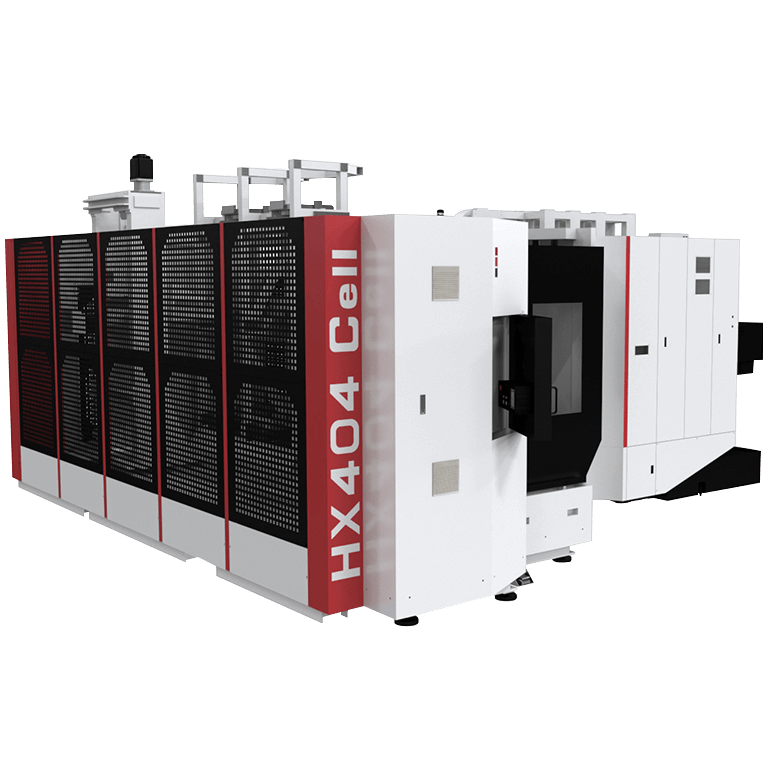

HX404 Cell
FMC Series
FMC series is an automated solution to maximize productivity. Simple installation and ease of maintenance makes it convenient for users to operate and maintain.
Automation equipment available for one single machine to multiple production lines.
Quaser Group provides technology and application expertise to enable the best manufacturing performance
| Technical Data | HX404 Cell |
| Work Range | |
| Pallet Size | □400 mm (□15.8") |
| Max. Work Swing Diameter | Ø630 mm (Ø24.8") |
| Max. Work Piece Height | 740 mm (29.1") |
| Travel X | 560 mm (22.1") |
| Travel Y | 640 mm (25.2") |
| Travel Z | 640 mm (25.2") |
| B Minimum Indexing (degree) | 1 / 0.001 |
| Table Load Capacity | 400 kg (882 lbs) |
| Main Spindle | |
| Spindle Taper |
40 taper
|
| Max. Spindle Speed | 15K ~ 20K |
| Pallet Changer (For Cell Only) | |
| Number of Pallet | 8 or 14 |
| Method of Pallet Changer / Storage | Swing type (internal) / Matrix type (External) |
| Tool Changer | |
| Magazine Positions | 240 (std.) |
| Max. Tool Diameter | 76.2 mm (3") |
| Max. Tool Dia. Due to Neighbor Pots Are Empty | 125 mm (4.9") |
| Max. Tool Length | 350 mm (13.8") |
Applications
Automobile, aerospace, construction machinery.…industries.
