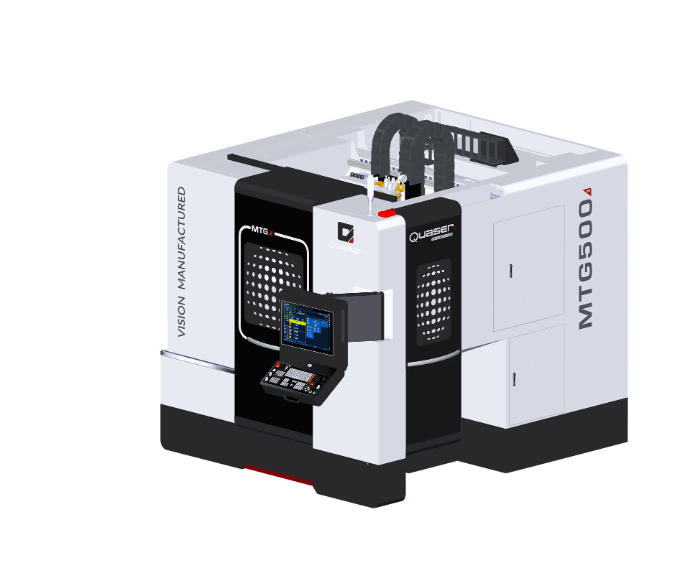

MTG500
5-Axis Mill/Turn/Grind Gantry M/C
A compact gantry-type 5-axis machining center designed with a focus on minimizing moving mass and maximizing stability. By positioning the center of gravity closer to the column, the moving weight stays close to the linear guideways, reducing structural deformation and ensuring consistent accuracy and repeatability.

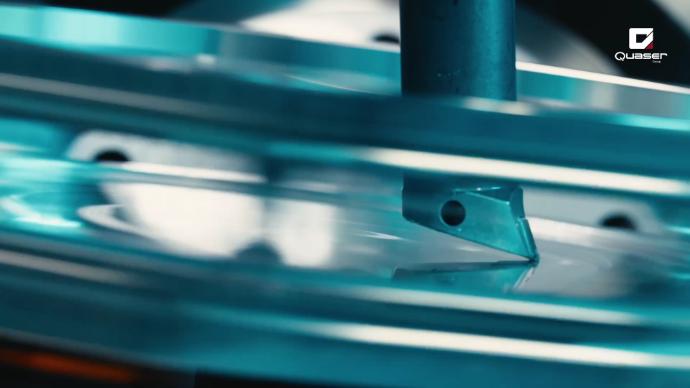

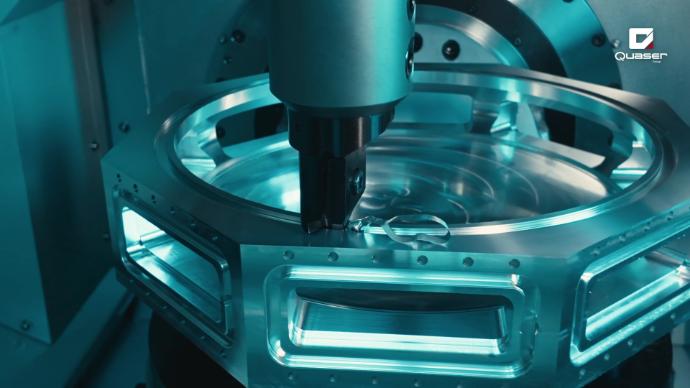

ROTARY TABLE Specifically designed for high-speed mill/turn and grinding applications.
Quaser Group provides technology and application expertise to enable the best manufacturing performance
| Technical Data | MTG500 |
| Work Range | |
| Table Size | Ø400 mm (Ø15.75") |
| Max. Swing | Ø500 mm (Ø19.69") |
| Max. Work Piece Size | Ø500 x H390mm (Ø19.69" x 15.35") |
| Travel X | 825 mm (32.48") |
| Travel Y | 508 mm (20") |
| Travel Z | 515 mm (20.28") |
| Table Load Capacity | 300 kg (661.3 lbs) |
| Main Spindle | |
| Spindle Taper | HSK T63 |
| Max. Spindle Speed | 15K |
| Tool Changer | |
| Magazine Positions | 48 (std.) |
| Max. Tool Diameter | 76.2 mm (3") |
| Max. Tool Dia. Due to Neighbor Pots Are Empty | 125mm (4.9") |
| Max. Tool Length | 280 mm (11.0") |
Applications
- Automobile: control arm, bracket, engine block.
- Aerospace: blisk, impeller, turbine blade.
- Medical: titanium artificial knee joint, dental part.
- Mold & die: tire mold & die in tool steel, plastic mold.
