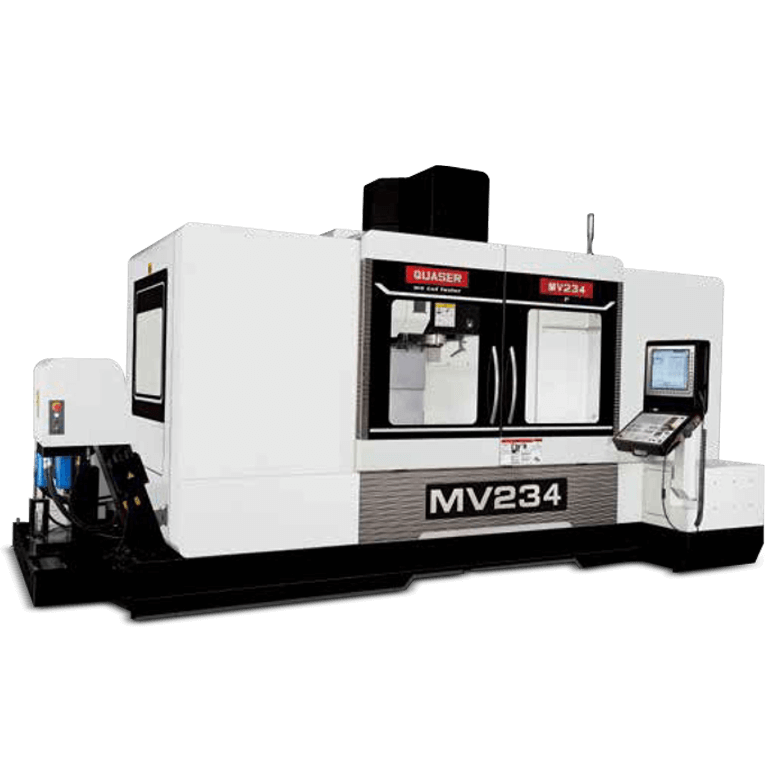

MV234 / MV235
Vertical M/C
The MV235 is able to cope with high-speed machining and high strength material machining, The MV235 combines high speed, high torque and high chip removal rates to achieve stable high-precision machining.
The 4 large linear guides of Y-axis are designed and installed on a one piece base to obtain high rigidity and stability. The extra wide column with it’s unique shoulder is designed to maintain column rigidity and geometric accuracy against the weight of the tool magazine.
The machine internals are equipped with a 6 piece auger system combined with an external lift up chip conveyor and coolant wash to best manage the chip disposal.
Quaser Group provides technology and application expertise to enable the best manufacturing performance
| Technical Data | MV234 | MV235 |
| Work Range | ||
| Table Size | 2,250 x 800 mm (88.6" x 31.5") | 2,250 x 800 mm (88.6" x 31.5") |
| Travel X | 2,040 mm (80.3") | 2,040 mm (80.3") |
| Travel Y | 800 mm (31.5") | 800 mm (31.5") |
| Travel Z | 661 mm (26.0") | 661 mm (26.0") |
| Table Load Capacity | 2,000 kg (4,409 lbs) | 2,000 kg (4,409 lbs) |
| Main Spindle | ||
| Spindle Taper |
40 taper
| 50 taper |
| Max. Spindle Speed | 9K ~ 20K | 6K ~ 15K |
| Tool Changer | ||
| Magazine Positions | 48 (std.) | 30(std.) |
| Max. Tool Diameter | 76.2 mm (3") | 125 mm (4.9") |
| Max. Tool Dia. Due to Neighbor Pots Are Empty | 125 mm (4.9") | 200 mm (7.9") |
| Max. Tool Length | 300 mm (11.8") | 350 mm (13.8") |
Applications
Suitable for large-scale workpiece, and large-scale aluminum alloy for aerospace.
