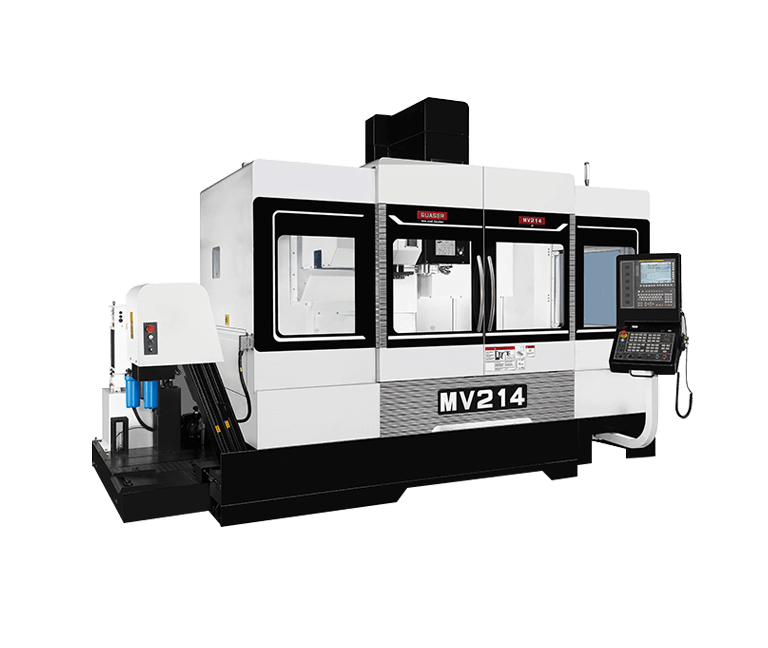

MV214 / MV215
Vertical M/C
The MV2 series offers a wide line-up of machines with X axes travels of 1,270 mm (50 inch) to 2,040 mm (80 inch) and various spindle speeds and drive configurations to allow the user to machine a wide range of workpieces.
To meet different processing needs, we offer a variety of machine and control specifications to choose from. In addition, the user-friendly control panel design has improved the customers operating convenience.
Quaser Group provides technology and application expertise to enable the best manufacturing performance
| Technical Data | MV214 | MV215 |
| Work Range | ||
| Table Size | 1,700 x 700 mm (66.9" x 27.6") | 1,700 x 700 mm (66.9" x 27.6") |
| Travel X | 1,524 mm (60.0") | 1,524 mm (60.0") |
| Travel Y | 700 mm (27.6") | 700 mm (27.6") |
| Travel Z | 610 mm (24.0") | 610 mm (24.0") |
| Table Load Capacity | 2,000 kg (4,409 lbs) | 2,000 kg (4,409 lbs) |
| Main Spindle | ||
| Spindle Taper |
40 taper
| 50 taper |
| Max. Spindle Speed | 9K ~ 20K | 7.5K ~ 15K |
| Tool Changer | ||
| Magazine Positions | 48 (std.) | 30(std.) |
| Max. Tool Diameter | 76.2 mm (3") | 125 mm (4.9") |
| Max. Tool Dia. Due to Neighbor Pots Are Empty | 125 mm (4.9") | 200 mm (7.9") |
| Max. Tool Length | 280 mm (11.0") | 350 mm (13.8") |
Applications
Automobile, mold & die, electronic, aerospace, defense, medical, energy, …industries.
