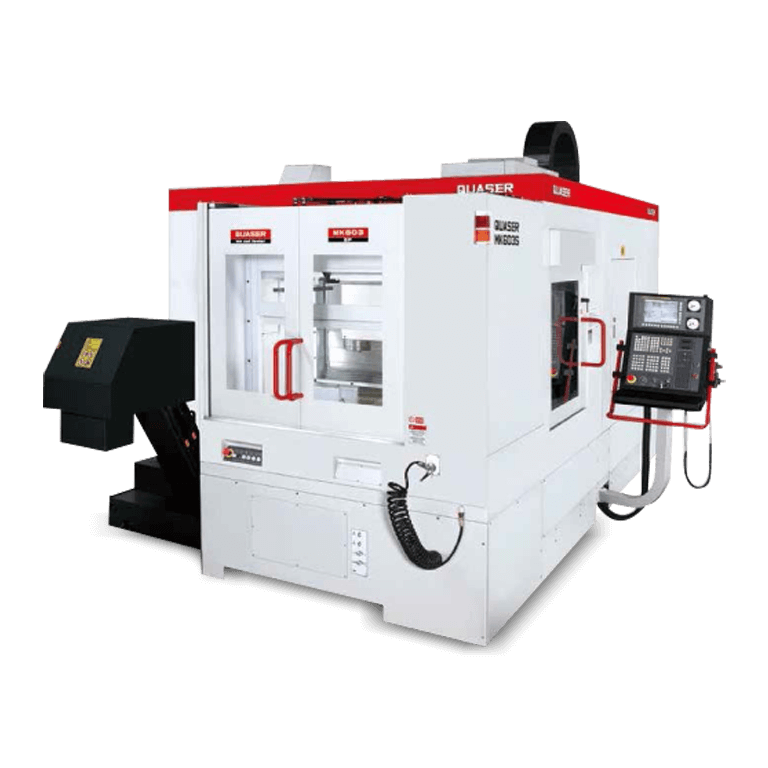

MK603S
Pallet M/C
MV154APC & MK603S are high-productivity machining centers designed for the automotive and IT industries. Durability and reliability are essential with a more rigid mechanical structure and a surefooted pallet change system.
Quaser Group provides technology and application expertise to enable the best manufacturing performance
| Technical Data | MK603S |
| Work Range | |
| Pallet Size | 1,050 x 550 x 2 mm (41.3" x 21.7" x 2) |
| Max. Work Swing Diameter | Ø1,630 mm (Ø64.2") |
| Max. Work Piece Height | 350 mm (13.8") |
| Travel X | 1,020 mm (40.2") |
| Travel Y | 610 mm (24.0") |
| Travel Z | 600 mm (23.6") |
| Table Load Capacity | 300 kg (661 lbs) |
| Pallet Changer | |
| Number of Pallet | 2 |
| Method of Pallet Changer | Swing type |
| Main Spindle | |
| Spindle Taper |
40 taper
|
| Max. Spindle Speed | 9K ~ 20K |
| Tool Changer | |
| Magazine Positions | 48 (std.) |
| Max. Tool Diameter | 76.2 mm (3") |
| Max. Tool Dia. Due to Neighbor Pots Are Empty | 125 mm (4.9") |
| Max. Tool Length | 300 mm (11.8") |
Applications
Automobile, IT, mass production…industries.
