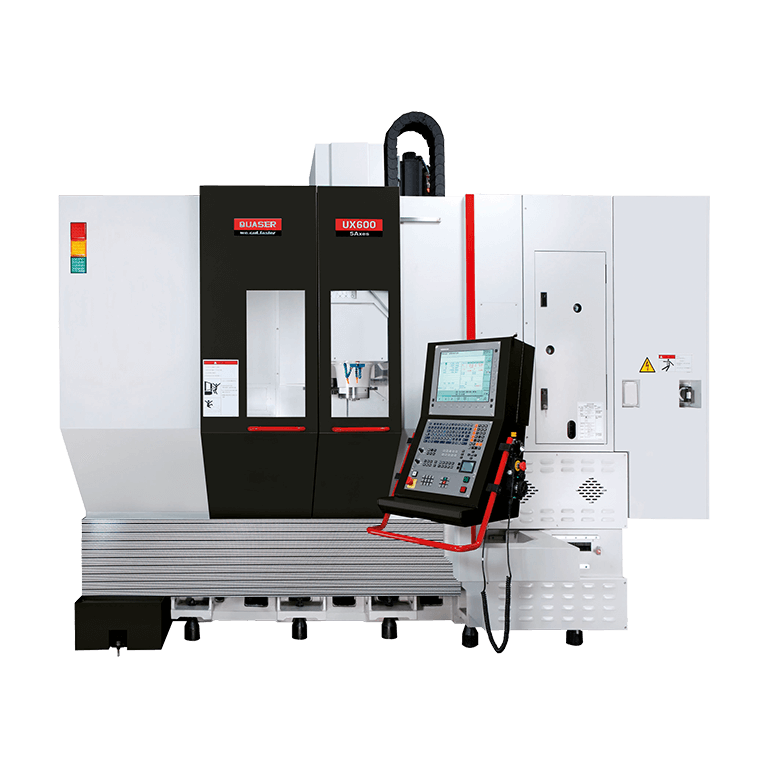

UX600C
Multi Face、5 Axes M/C
The double column structure design emphasizes excellent performance in terms of accuracy, mechanical rigidity, and machining stability.
Stable and compression-resistant design to ensure the spindle torsion, cutting ability, and worktable load.
Due to our outstanding craftsmanship, our machine has better cutting performance and better machining accuracy than most competitors’ in its class.
Quaser Group provides technology and application expertise to enable the best manufacturing performance
| Technical Data | UX600C |
| Work Range | |
| Table Size | Ø500 mm (Ø19.7") |
| Max. Swing | Ø630 mm (Ø24.8") |
| Max. Work Piece Size | Ø630 x 425 mm (Ø24.8" x 16.7") |
| Travel X | 885 mm (34.8") |
| Travel Y | 800 mm (31.5") |
| Travel Z | 500 mm (19.7") |
| Table Load Capacity | 300 kg (661 lbs) |
| Main Spindle | |
| Spindle Taper |
40 taper
|
| Max. Spindle Speed | 12K |
| Tool Changer | |
| Magazine Positions | 30 (std.) |
| Max. Tool Diameter | 76.2 mm (3") |
| Max. Tool Dia. Due to Neighbor Pots Are Empty | 125 mm (4.9") |
| Max. Tool Length | 280 mm (11.0") |
Applications
- Automobile: control arm, bracket, engine block.
- Aerospace: blisk, impeller, turbine blade.
- Medical: titanium artificial knee joint, dental part.
- Mold & die: tire mold & die in tool steel, plastic mold.
