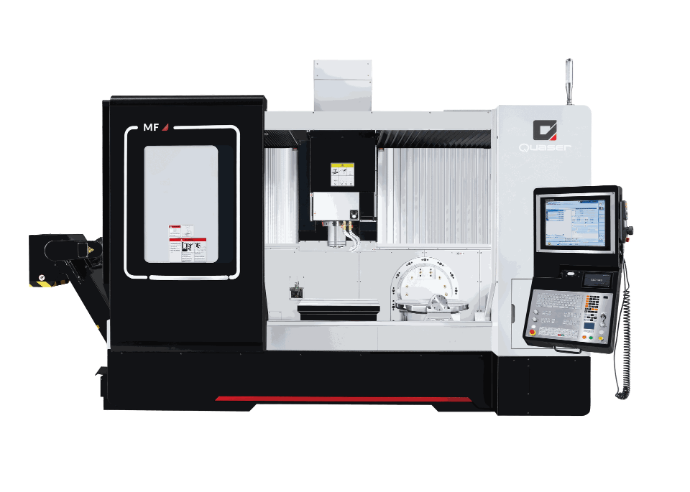

MF700 (Flex)
Multi Face、5 Axes M/C
Key Features:
• Dual Platform Design: Complementary switching for diverse machining needs
• Large Workpiece Setup: Stable support for heavy or specialized parts
• Enhanced Heavy-Duty Rigidity: Reduced vibration, improved precision
• Flexible Configuration: Multiple fixtures for simultaneous setup, higher efficiency
• Flexible Production Scheduling: Choose rotary or fixed table, enhanced flexibility
Quaser Group provides technology and application expertise to enable the best manufacturing performance
| Technical Data | MF700(Flex) |
| Work Range | |
| Table Size | 700 x 550 / Ø650 mm (27.56" x 21.65 / Ø25.59") |
| Max. Swing | Ø700 mm (Ø27.56") |
| Max. Work Piece Size | Ø700 x H500 mm (Ø27.56" x H19.69") |
| Travel X | 1680 mm (66.14") |
| Travel Y | 570 mm (22.44") |
| Travel Z | 530 mm (20.87") |
| Table Load Capacity | 500 kg (1102.30 lbs) |
| Main Spindle | |
| Spindle Taper |
40 taper
|
| Max. Spindle Speed | 12K ~ 24K |
| Tool Changer | |
| Magazine Positions | 48 (std.) |
| Max. Tool Diameter | 76.2 mm (3") |
| Max. Tool Dia. Due to Neighbor Pots Are Empty | 125 mm (4.9") |
| Max. Tool Length | 300 mm (11.81") |
